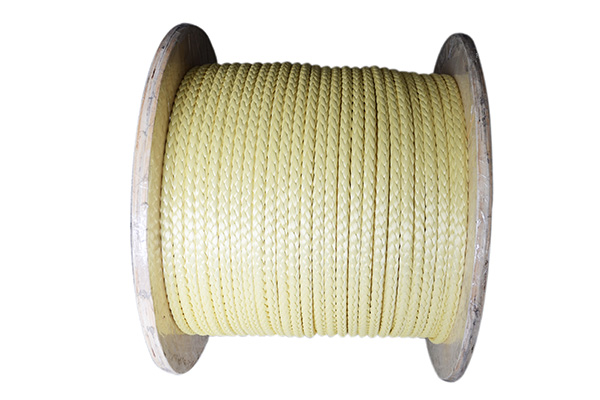

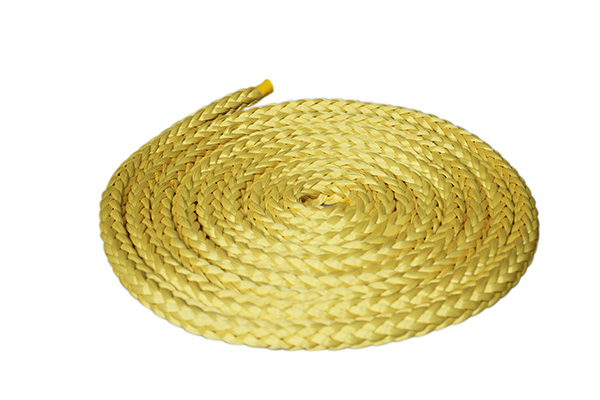

Aramid Rope
Aramid Rope
Aramid Rope
Aramid Rope
Aramid Rope
Product Description:

Quality Aramid Rope suppliers & exporter - all products made in China.

Aramid Rope
Aramid Rope
Aramid Rope
Aramid Rope
  • Specifications
  • Overview
  • Technical Comparison
Diameter Circle Weight Breaking Strength
mm inch inch g/m kg/100M kn ton
6 1/4 3/4 29 2.9 17.00 1.74
8 5/16 1 51 5.1 31.00 3.17
10 13/32 1-1/4 80 8.0 50.00 5.10
12 15/32 1-1/2 118 11.8 68.00 6.94
14 9/16 1-3/4 163 16.3 83.00 8.47
16 5/8 2 208 20.8 118.00 12.04
18 23/32 2-1/4 260 26.0 156.00 15.92
20 13/16 2-1/2 322 32.2 186.00 19.00
22 7/8 2-3/4 396 39.6 232.00 23.70
24 15/16 3 470 47.0 278.00 28.40
28 1-1/8 3-1/2 640 64.0 372.00 38.00
32 1-1/4 4 858 85.8 476.00 48.60
36 1-7/16 4-1/2 1050 105.0 582.00 59.40
40 1-19/32 5 1270 127.0 715.00 73.00
44 1-3/4 5-1/2 1546 154.6 869.00 88.70
48 1-7/8 6 1845 184.5 1030.00 105.00
32 1-5/16 4 41.8 62.2 184000 83.60
34 1-3/8 4-1/8 45.0 67.0 202900 92.20
36 1-1/2 4-1/2 51.7 76.9 222200 101.00
40 1-5/8 5 63.5 88.0 268400 122.00
44 1-3/4 5-1/2 77.8 107.8 321200 146.00
48 2 6 91.2 126.4 365200 166.00
52 2-1/8 6-1/2 109.1 151.2 431500 196.12
56 2-1/4 7 116.0 173.0 464700 211.20
60 2-1/2 7-1/2 145.0 201.0 561300 255.10
64 2-5/8 8 163.0 226.0 593100 269.59
68 2-3/4 8-1/2 187.0 258.5 706300 321.02
72 3 9 210.0 291.0 787600 358.00
80 3-1/4 10 255.0 353.0 935000 425.00
Features:
.Material: High performance Aramid fiber yarns
.Construction:3、8、12-strand braided
.Specific Gravity:1.44g/m2
.Elongation:5% at break
.Melting Point:450℃
.Abrasion Resistance:Excellent
.UV and Chemicals Resistance:good
.No difference in tensile strength when wet or dry
.In -40℃~350℃ scopes normal operation

Application:
Mooring lines
Towing slings
Fiber-optic cables
Military special purpose
Winch line
