Product Description:

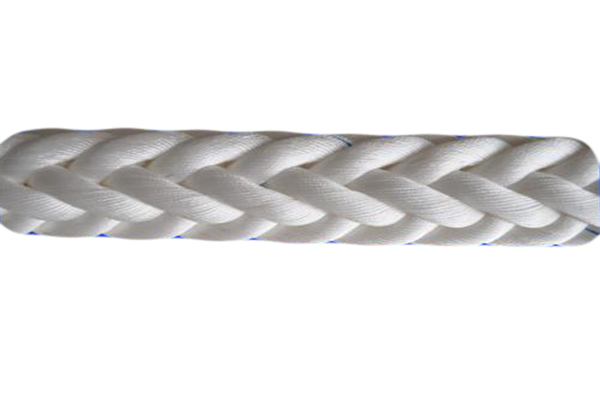

Our 12-Strand PP Rope made by PP Monofilament.

12-Strand PP Rope
12-Strand PP Rope
12-Strand PP Rope
12-Strand PP Rope
  • Specifications
  • Overview

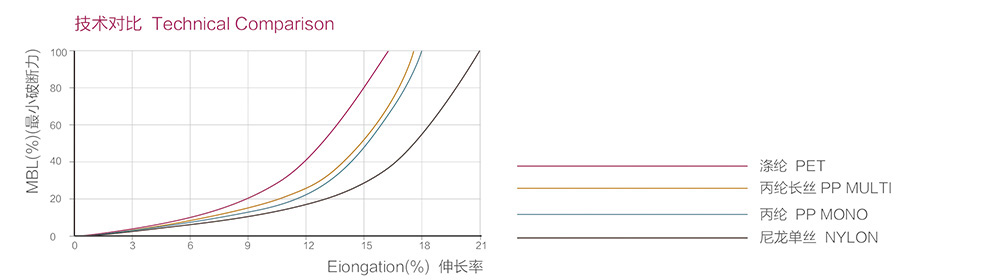

  • Technical Comparison
Diameter Circle 12 Strand
Weight Breaking Strength
mm inch inch kg/220M ton
24 1 3 57.20 8.3
28 1-1/8 3-1/2 78.10 10.9
32 1-1/4 4 101.20 13.8
36 1-1/2 4-1/2 128.92 17.9
40 1-19/32 5 157.96 21.5
44 1-3/4 5-1/2 193.82 25.8
48 1-7/8 6 228.80 30.1
52 2-1/16 6-1/2 268.40 34.8
56 2-1/4 7 312.40 39.6
60 2-3/8 7-1/2 358.60 45.4
64 2-1/2 8 407.00 51.3
68 2-11/16 8-1/2 462.00 56.5
72 2-7/8 9 514.80 64.6
80 3-5/32 10 640.20 79.4
88 3-7/16 11 772.20 95.2
96 3-13/16 12 915.20 113.3
100 4 12-1/2 997.70 121
104 4-1/8 13 1069.20 128.6
112 4-7/16 14 1249.60 149
120 4-3/4 15 1432.20 170.4
Features:
. Material:PP Monofilament
.Construction:3,8 &12-strand
.Specific Gravity:0.91g/m2
.Elongation:17-21% at break
.Melting Point:165℃
.Abrasion Resistance:Excellent
.UV and Chemicals Resistance:good

Application:
Wire rope replacement
Secondary mooring ropes
Barge and dredge working ropes
Tractor tug winch ropes
General working ropes
Heavy loft slings
Lowering/lifting ropes
Towing ropes
Working ropes
Safety ropes
Hardware ropes
