Product Description:

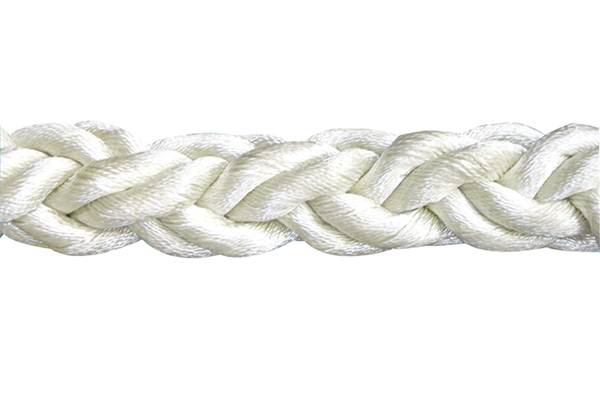

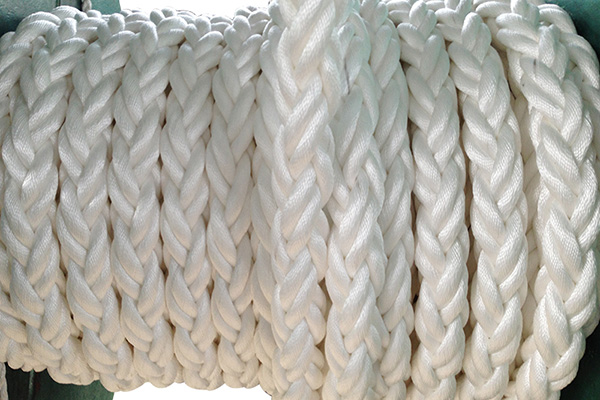

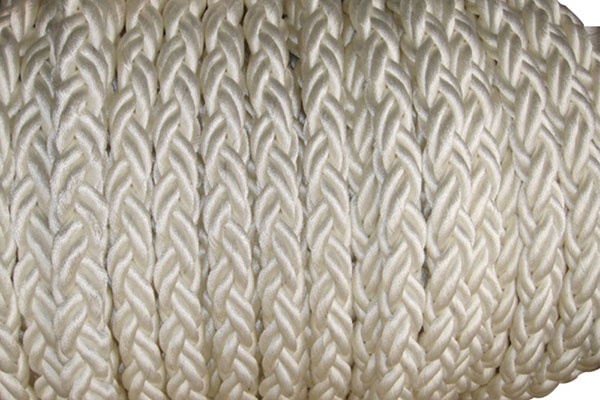

Our 8-Strand Nylon Rope made by Nylon6 or Nylon66(Polyamide)

8-Strand Nylon Rope
8-Strand Nylon Rope
8-Strand Nylon Rope
8-Strand Nylon Rope
  • Specifications
  • Overview
  • Technical Comparison
Diameter Circle 8 Strand Nylon Rope
Weight Breaking Strength
mm inch inch kg/220M ton
24 1 3 78.1 13.4
28 1-1/8 3-1/2 106.7 17.8
32 1-1/4 4 138.6 22.5
36 1-1/2 4-1/2 176.0 28.2
40 1-19/32 5 220.0 34
44 1-3/4 5-1/2 266.2 40.5
48 1-7/8 6 314.6 47.5
52 2-1/16 6-1/2 369.6 55
56 2-1/4 7 424.6 62.5
60 2-3/8 7-1/2 486.2 70.5
64 2-1/2 8 554.4 80
68 2-11/16 8-1/2 629.2 90
72 2-7/8 9 701.8 100
80 3-5/32 10 866.8 123
88 3-7/16 11 1051.6 145
96 3-13/16 12 1251.8 170
100 4 12-1/2 1355.2 184
104 4-1/8 13 1465.2 200
112 4-7/16 14 1698.4 210
120 4-3/4 15 1951.4 255
Features:
Material:Polyamide/Nylon
.Construction:3,8 &12-strand
.Specific Gravity:1.14g/m2
.Elongation:15-25% at break
.Melting Point:215℃
.Abrasion Resistance:Excellent
.UV and Chemicals Resistance:good

Application:
Wire rope replacement
Secondary mooring ropes
Barge and dredge working ropes
Tractor tug winch ropes
General working ropes
Heavy loft slings
Lowering/lifting ropes
Towing ropes
Working ropes
Safety ropes
Hardware ropes
