Product Description:

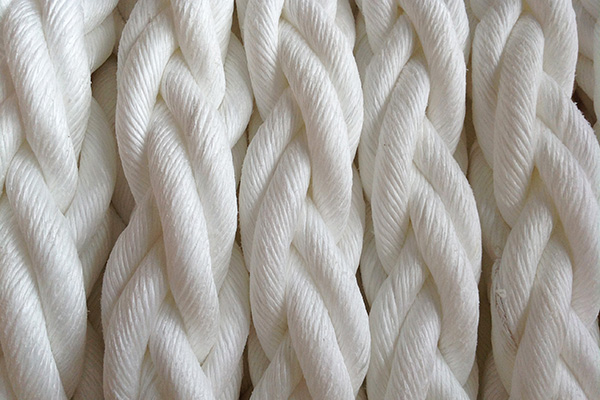

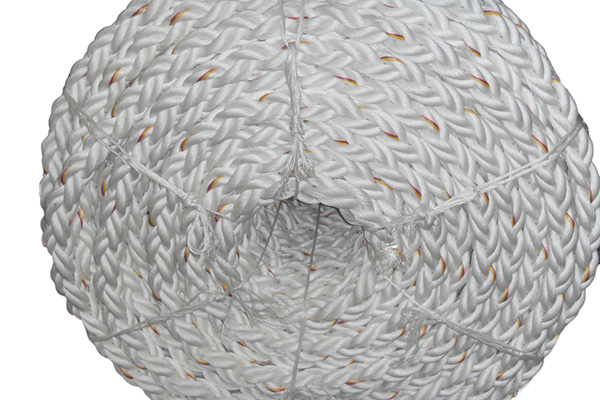

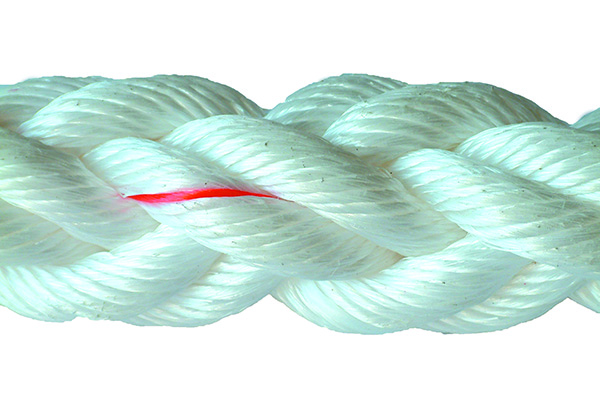

Our 8-Strand PP Rope made by PP Monofilament.

8-Strand PP Rope
8-Strand PP Rope
8-Strand PP Rope
8-Strand PP Rope
  • Specifications
  • Overview

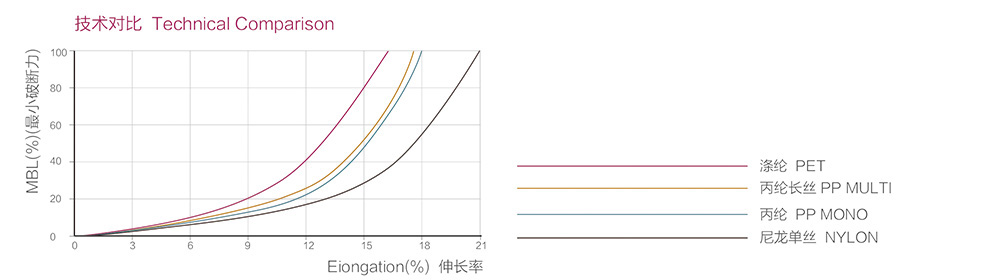

  • Technical Comparison
Diameter Circle 8 Strand
Weight Breaking Strength
mm inch inch kg/220M ton
24 1 3 57.2 8.13
28 1-1/8 3-1/2 78.1 10.7
32 1-1/4 4 101.2 13.5
36 1-1/2 4-1/2 129.8 17.04
40 1-19/32 5 158.4 20.82
44 1-3/4 5-1/2 193.6 24.8
48 1-7/8 6 228.8 29.18
52 2-1/16 6-1/2 268.4 33.88
56 2-1/4 7 312.4 38.88
60 2-3/8 7-1/2 358.6 44.18
64 2-1/2 8 407.0 49.8
68 2-11/16 8-1/2 460.9 55.92
72 2-7/8 9 514.8 62.04
80 3-5/32 10 635.8 75.71
88 3-7/16 11 772.2 90.92
96 3-13/16 12 917.4 107.14
100 4 12-1/2 997.7 115.82
104 4-1/8 13 1078.0 124.49
112 4-7/16 14 1254.0 141.84
120 4-3/4 15 1432.2 164.29
Features:
. Material:PP Monofilament
.Construction:3,8 &12-strand
.Specific Gravity:0.91g/m2
.Elongation:17-21% at break
.Melting Point:165℃
.Abrasion Resistance:Excellent
.UV and Chemicals Resistance:good

Application:
Wire rope replacement
Secondary mooring ropes
Barge and dredge working ropes
Tractor tug winch ropes
General working ropes
Heavy loft slings
Lowering/lifting ropes
Towing ropes
Working ropes
Safety ropes
Hardware ropes
