Product Description:

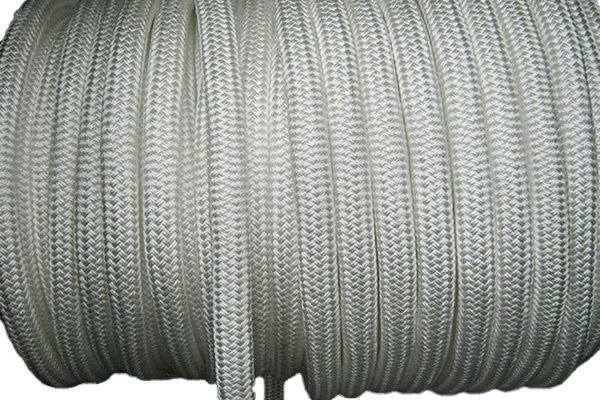

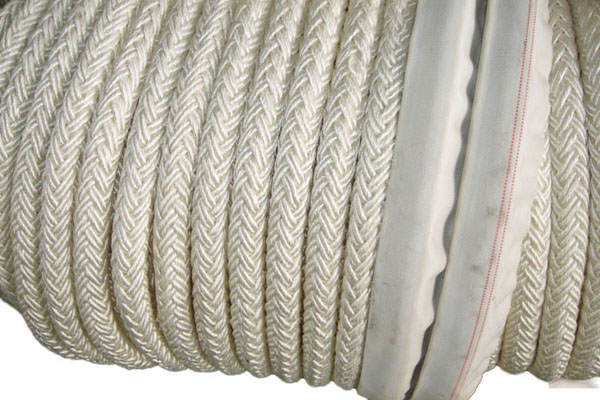

Our Double Braided Polyester Rope made by polyester multifilament

Double Braided Polyester Rope
Double Braided Polyester Rope
Double Braided Polyester Rope
Double Braided Polyester Rope
  • Specifications
  • Overview
  • Technical Comparison
Diameter Circle Double Braided Polyester Rope
Weight Breaking Strength
mm inch inch g/m kg/220M kn ton
6 1/4 3/4 31 73.7 122.60 12.51
8 5/16 1 48 101.2 162.80 16.61
10 3/8 1-1/8 67 130.9 208.90 21.31
11 7/16 1-1/4 91 163.2 260.00 26.52
12 1/2 1-1/2 122 201.3 313.90 32.02
14 9/16 1-3/4 164 239.8 372.80 38.03
16 5/8 2 208 290.4 431.60 44.02
18 3/4 2-1/4 268 330.0 500.30 51.03
22 7/8 2-3/4 403 73.7 122.60 12.51
24 1 3 506 101.2 162.80 16.61
28 1-1/8 3-1/2 674 130.9 208.90 21.31
32 1-1/4 4 905 163.2 260.00 26.52
36 1-1/2 4-1/2 1090 201.3 313.90 32.02
40 1-19/32 5 1280 239.8 372.80 38.03
44 1-3/4 5-1/2 1550 290.4 431.60 44.02
48 1-7/8 6 1850 330.0 500.30 51.03
52 2-1/16 6-1/2 2190 393.8 578.80 59.04
56 2-1/4 7 2570 441.1 657.20 67.03
60 2-3/8 7-1/2 2920 497.2 735.70 75.04
64 2-1/2 8 3350 558.8 824.00 84.05
68 2-11/16 8-1/2 3660 624.8 922.10 94.05
72 2-7/8 9 4460 767.8 1118.30 114.07
80 3-5/32 10 5580 924.0 1353.70 138.08
88 3-7/16 11 6700 966.9 1412.60 144.09
96 3-13/16 12 7810 1100.0 1599.00 163
100 4 12-1/2 8280 1185.8 1736.30 177
104 4-1/8 13 8760 1289.2 1883.50 192
112 4-7/16 14 10250 1482.8 2167.90 221
120 4-3/4 15 11730 1702.8 2481.90 253
Features:
.Material:Polyester
.Construction:Double braided
.Specific Gravity:1.38g/m2
.Elongation:7-19% at break
.Melting Point:265℃
.Abrasion Resistance:Excellent
.UV and Chemicals Resistance:good

Application:
Wire rope replacement
Secondary mooring ropes
Barge and dredge working ropes
Tractor tug winch ropes
General working ropes
Heavy loft slings
Lowering/lifting ropes
Towing ropes
Working ropes
Safety ropes
Hardware ropes
